SPECIFICATIONS

Bluetooth: Yes

Brand Name: S.M.S.L

DSD Sampling Frequencies: 2.8224 MHz (DSD64),5.6448 MHz (DSD128),11.2896 MHz (DSD256),22.5792 MHz (DSD512)

Hign-concerned Chemical: None

Inputs: USB Type-B,Optical (SPDIF),Coaxial

Material: Metal

Origin: Mainland China

Outputs: RCA,XLR

PCM Sampling Frequencies: 44.1 kHz,48 kHz,88.2 kHz,96 kHz,176.4 kHz,192 kHz,352.8 kHz,384 kHz,705.6 kHz,768 kHz

PCM Word Length: 16-bit,24-bit,32-bit

Type: Desktop

WIFI: No

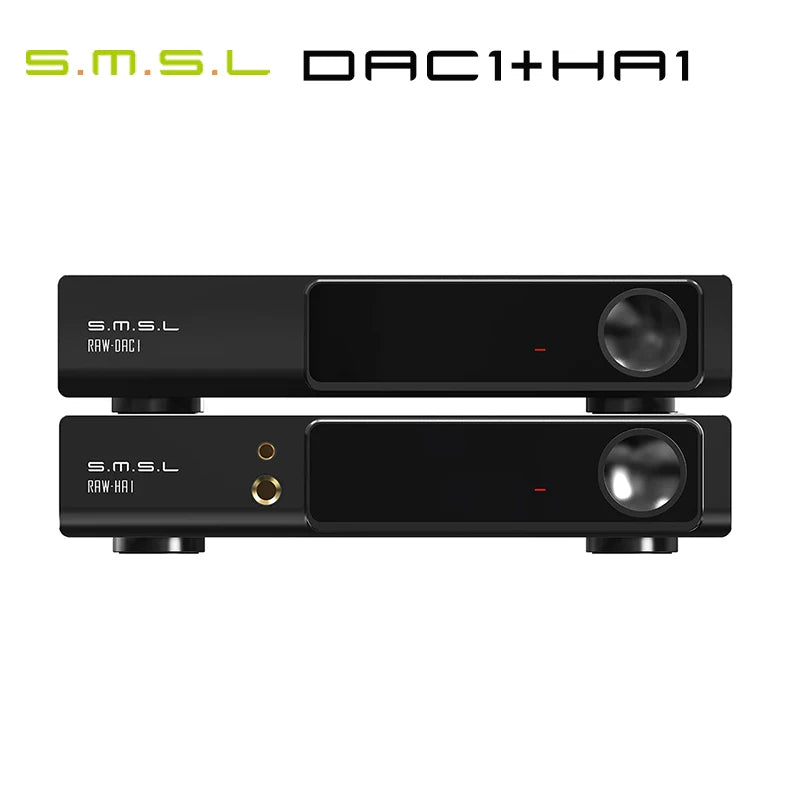

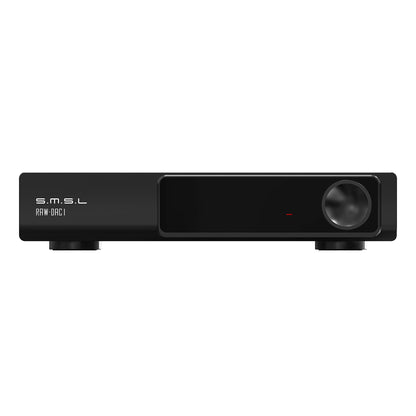

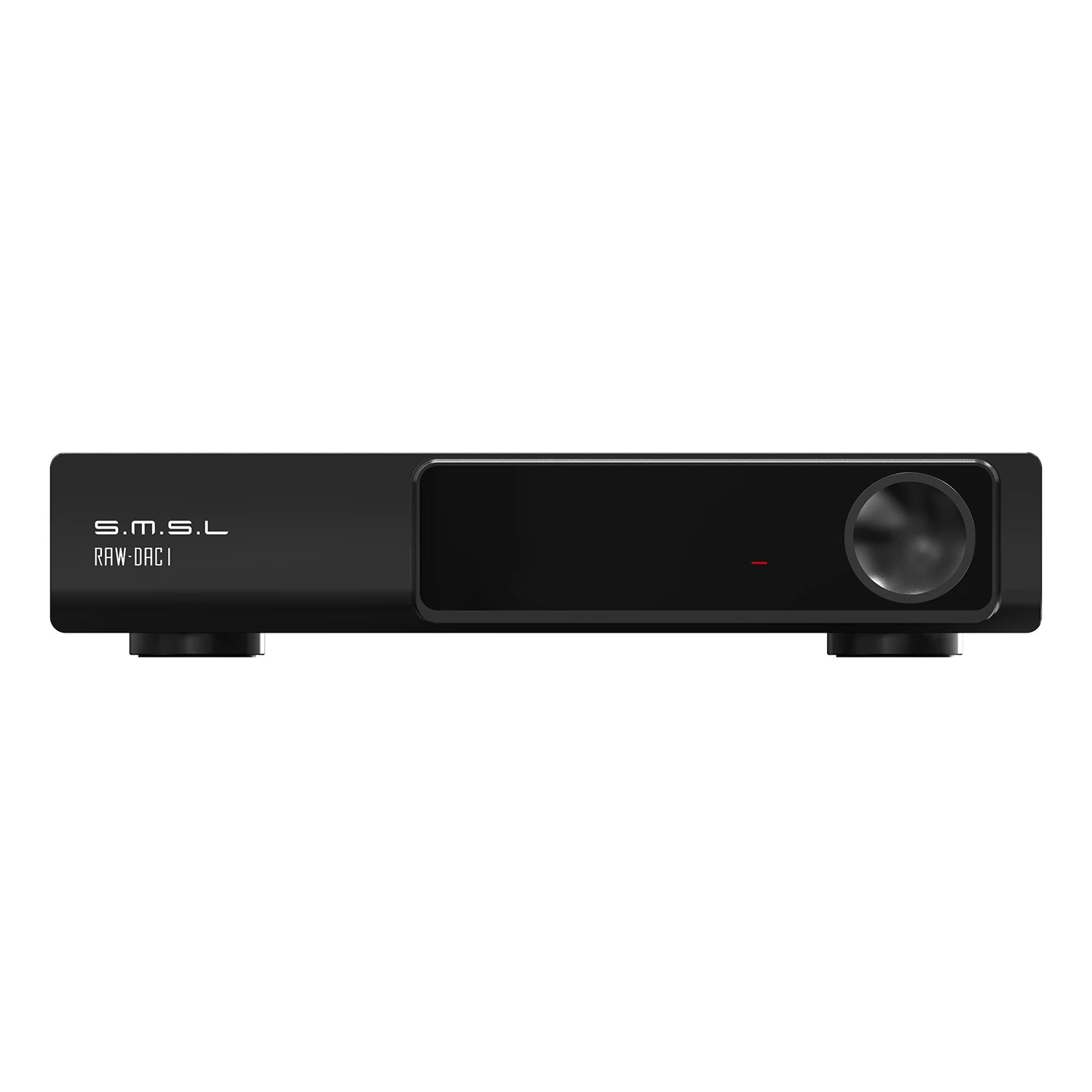

SMSL RAW-DAC1 Decoder

support MQA &MQA-CD

The latest high-end dual ESS decoding chipES9039Q2M

Qualcomm Bluetooth chip: Supports LDAC24bit/96kHz, APTX/HD, SBC and AAC.
XMOSXU316： USB adapts XMOS XU316, for a real 32bit， Support DoP and native DSD， PCM supports up to 768kHz and DSD supports up to DSD512.

USB1.1 and USB2.0 Two mode options： Allow to switch two different USB modes in the menu. Using USB2.0 supports 768kHz/32bit with driver installation required.

Using USB1.1 supports 96kH without the driver. USB1.1 and USB2.0，Two mode options： Allow to switch two different USB modes in the menu.

Using USB2.0 supports 768kHz/32bit with driver installation required. Using USB1.1 supports 96kH without the driver.

SPEC:

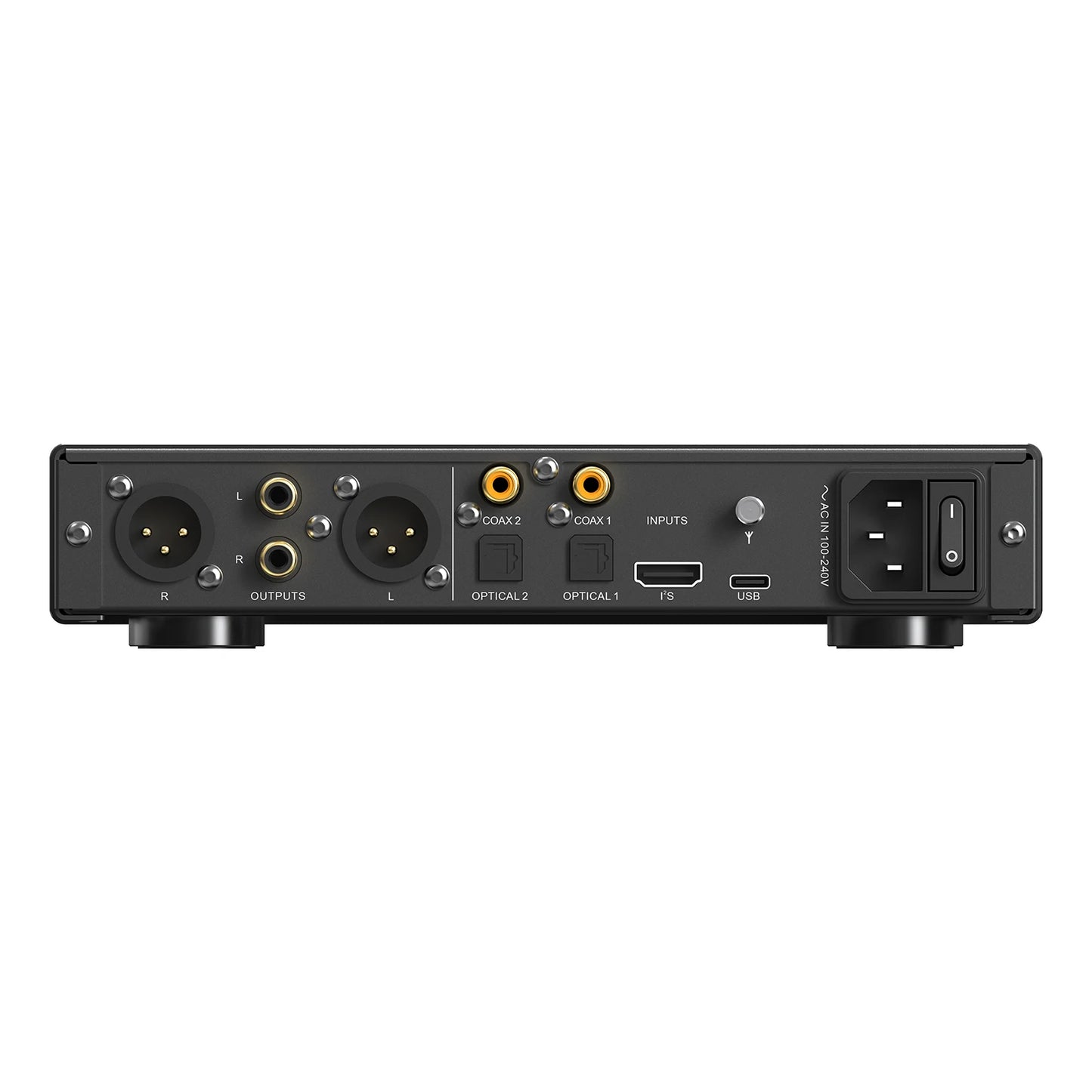

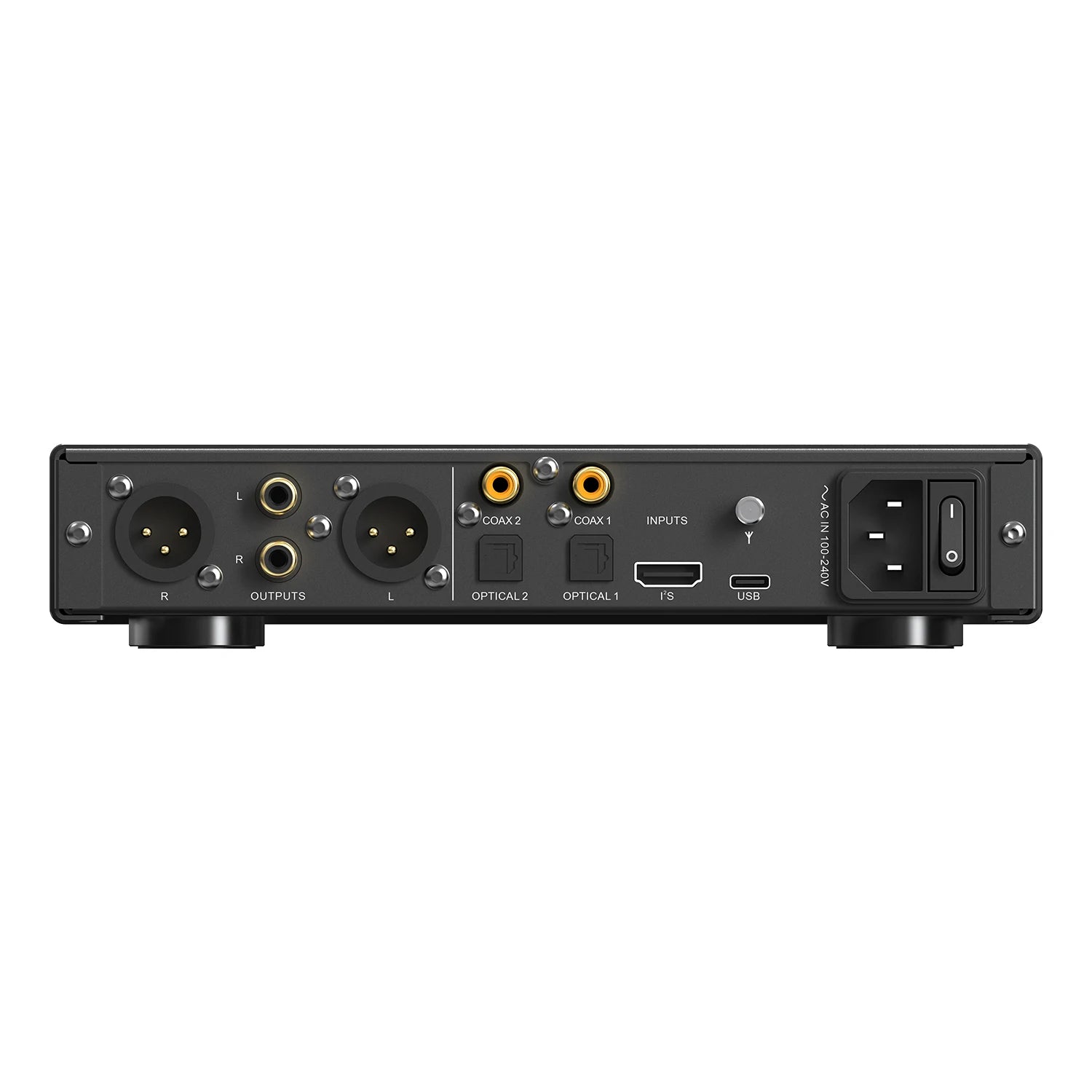

Input：USB/optical 1/optical 2/coaxial 1/coaxial 2/1IS/Bluetooth

Output：XLR/RCA

Output Amplitude：

XLR 5Vrms

RCA 2.5Vrms

THD+N：0.00006%(-124dB)(UN-WTD)

Dynamic range：

XLR 132dB

RCA 127dB

SNR ：

XLR 132dB

RCA 127dB

USB transmission：USB2.0(Asynchronization)

USB compatibility：Windows7 /8/8.1/ 10/ 11(Needs Driver)

Ma c OSX10.6 or above、Linux(Driverless)

MQA decoder：USB/ Optical / Coaxial

Sampling rate& Bit Width:

USB

PCM 44.1~768kHz(32bit)

DSD2.8224~22.5792MHz(1bit)

DoP2.8224~11.2896MHz(1bit)

Optical/coaxial

PCM44.1~192kHz(24bit)

DoP2.8224MHz(1bit)

Bluetooth specification:5.1(supports SBC,AAC,aptX,aptX HD,LDAC)

Power Consumption<10W

Standby power<0.5W

Size :219x180x45mm (WxHxD)

Weight:1.33kg/2.93lbs

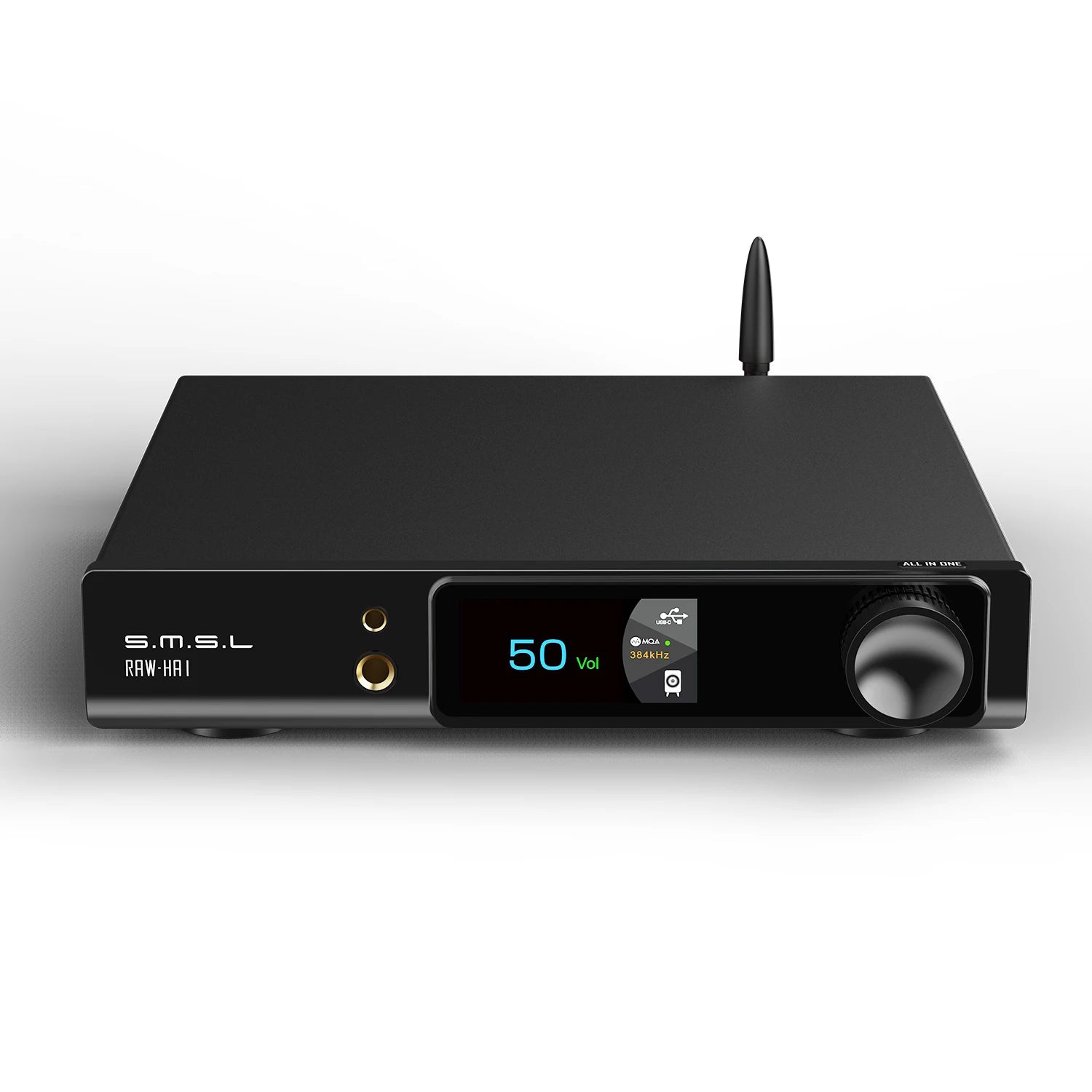

SMSL RAW-HA1 Headphone Amplifier

Volume Control chip NJW1194: Accurate volume control and low distortion

Support MQA and MQA-CD: MQA (Master Quality Authenticated) is an award-winning British technology, and it is a high-resolution audio coding technology with extremely high sampling rate and small enough file size. RAW-HA1 adopts MQA technology, which can receive and decode MQA audio, and provide master sound.

Brand-new 3rd Generation XMOS XU-316： PCM supports up to 32bit/ 768kHz DSD supports to DSD256

The Latest High-end CS43131 DAC Chip

New Digital High Power Amplifier Chip： Higher quality with high efficiency and low energy consumption

SPEC:

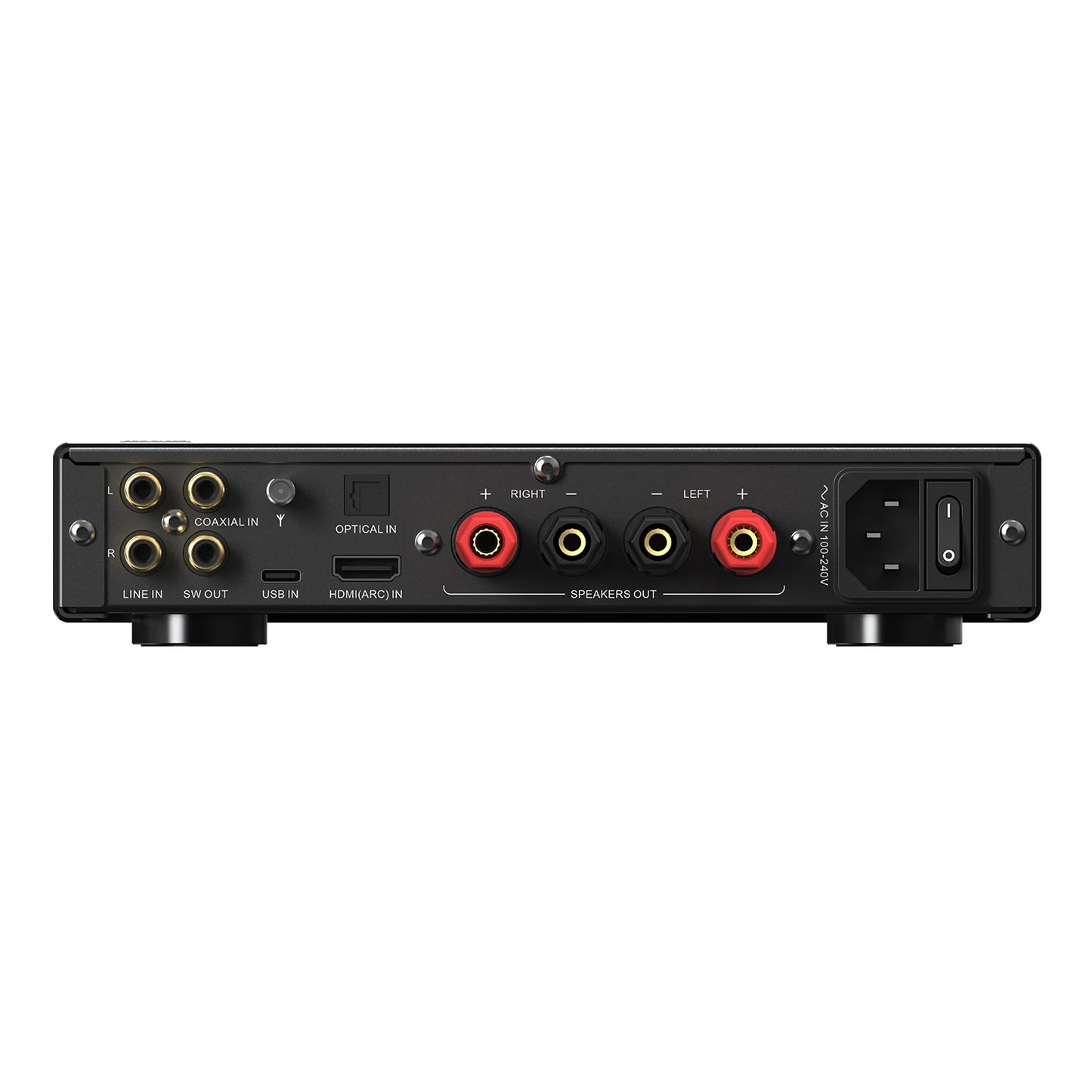

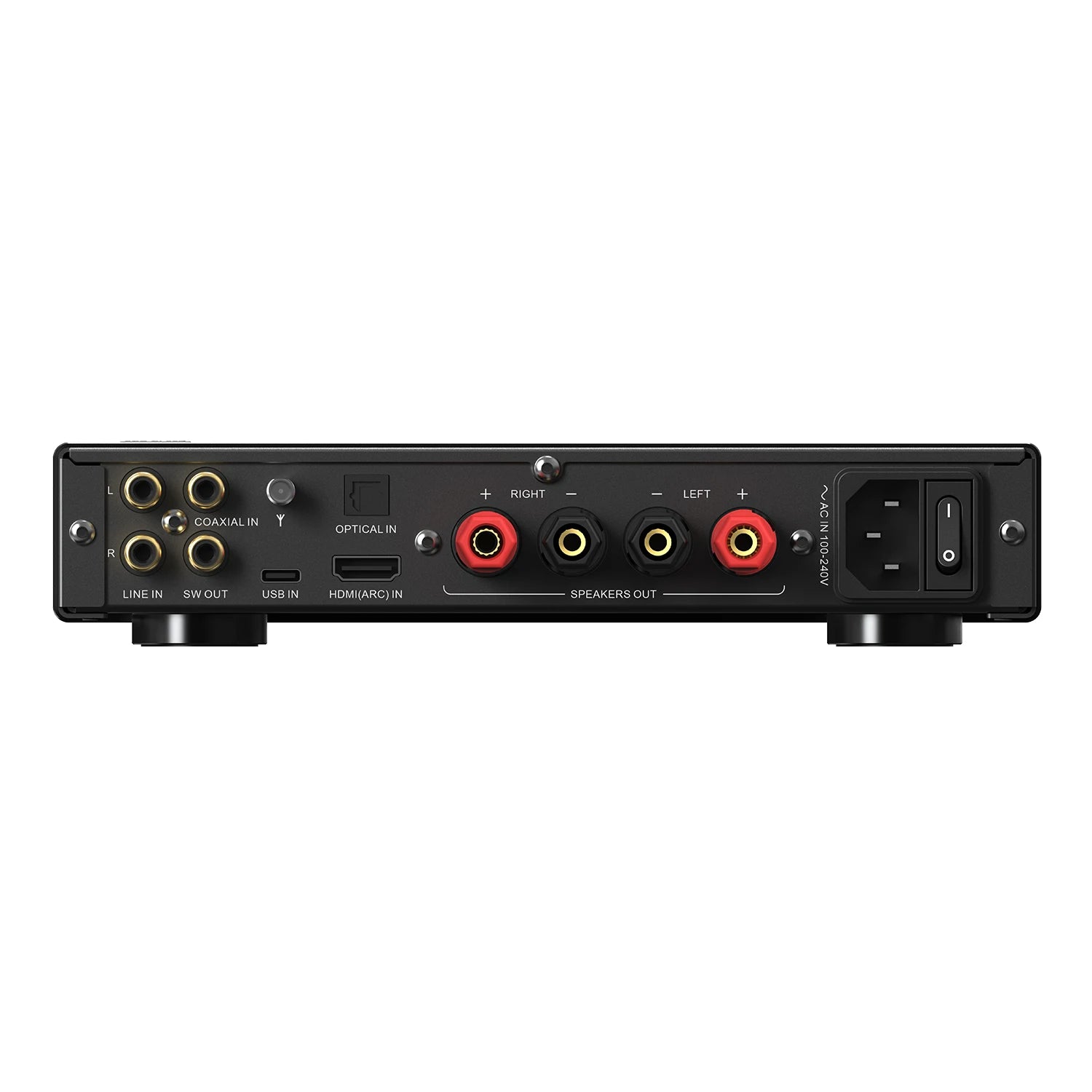

Input：HDMI(ARC/RCAVBT/USB/Optical/Coaxial

THD+N：0.003%

SNR：108dB

Channel separation：87dB

Input Sensitivity / Input Impedance：245mV/22kΩ

Output Power：stereophonic

4Ω：165Wx2

8Ω：85Wx2

USB transmission：USB2.0(Asynchronous Transfer)

USB compatibility：Windows7 /8/8.1/ 10/ 11, Ma c OSX, Linux

MQA decoder：USB/Optical/Coaxial

MQA-CD decoder：Optical/Coaxial

Bit Depth

USB：1bit, 16~32bit

Optical/Coaxial：1bit, 16~24bit

Sampling rate：

USB

PCM44.1~768kHz

DSD2.8224~11.2896MHz

Optical/Coaxial

PCM44.1~192kHz

DSD DSD64([DoP)

Bluetooth specification：5.1(support SBC,AAC,aptX,aptX HD,LDAC)

Power Consumption：40W(Normal Volume)

Size：219X45X190mm(WxHxD)

Weight：1.55kg/3.42lbs
