SPECIFICATIONS

Bluetooth: Yes

Brand Name: GUSTARD

DSD Sampling Frequencies: 2.8224 MHz (DSD64),5.6448 MHz (DSD128),11.2896 MHz (DSD256),22.5792 MHz (DSD512)

Dimensions (W x H x D): 420*360*175mm

Hign-concerned Chemical: None

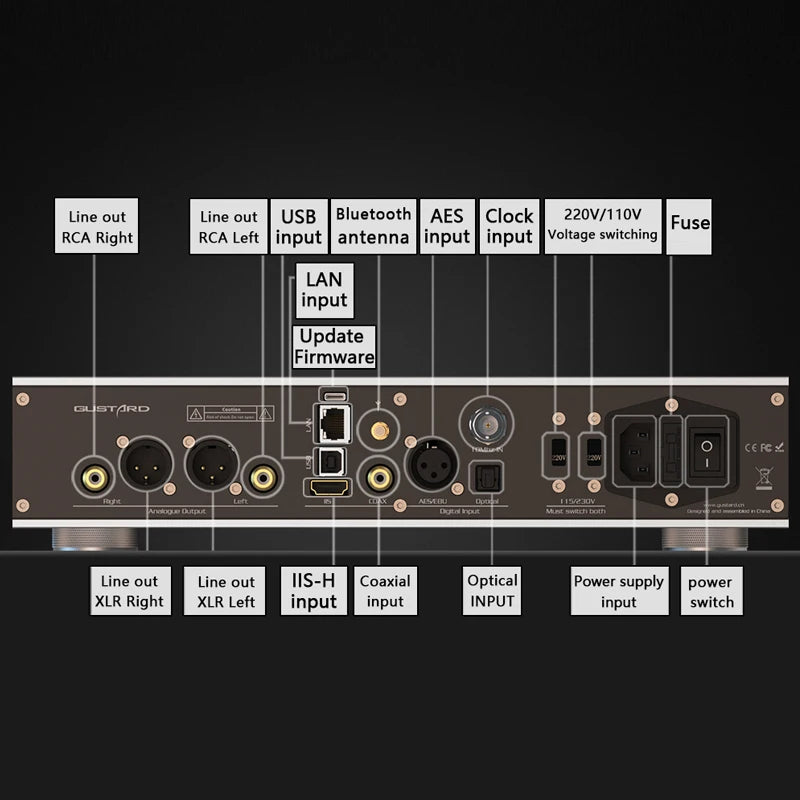

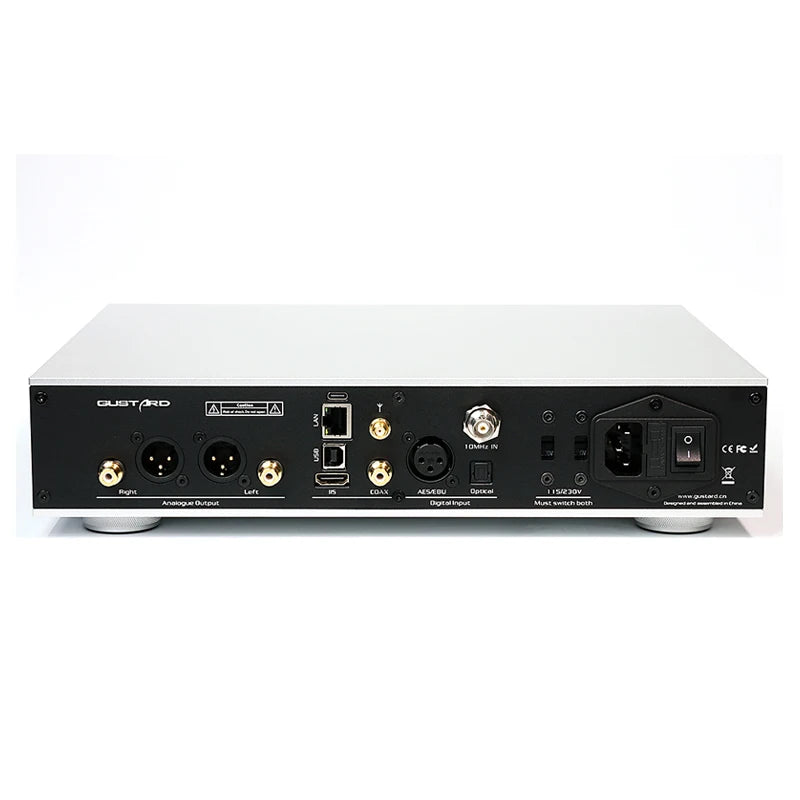

Inputs: USB Type-B,Optical (SPDIF),Coaxial

Material: Metal

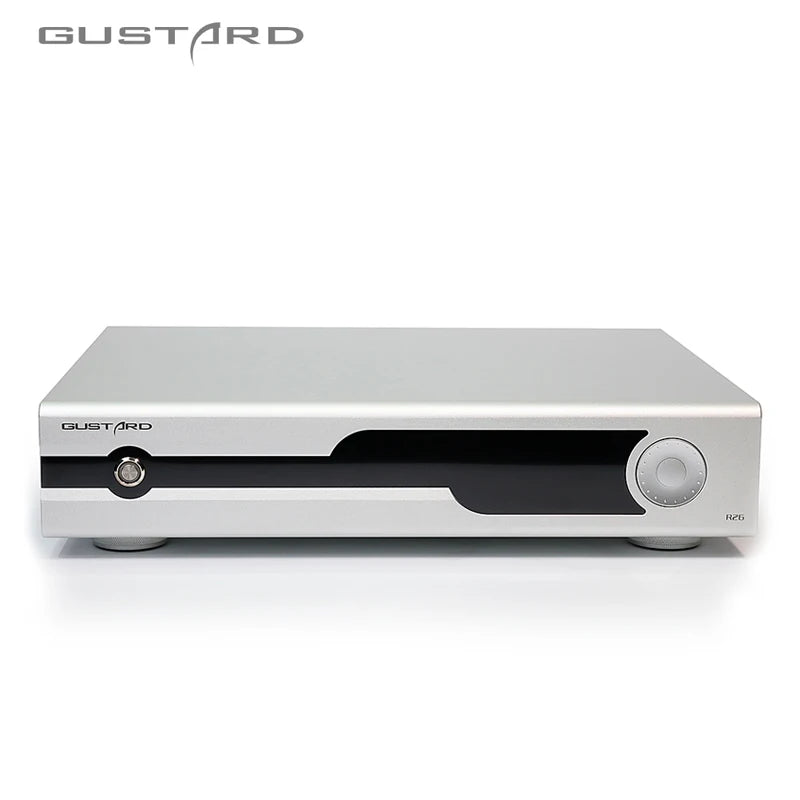

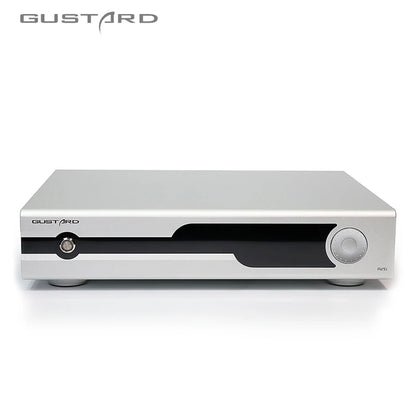

Model Number: R26 decoder

Origin: Mainland China

Outputs: RCA,XLR

PCM Sampling Frequencies: 44.1 kHz,48 kHz,88.2 kHz,96 kHz,176.4 kHz,192 kHz,352.8 kHz,384 kHz,705.6 kHz,768 kHz

PCM Word Length: 16-bit,24-bit,32-bit

Type: Desktop

Features:

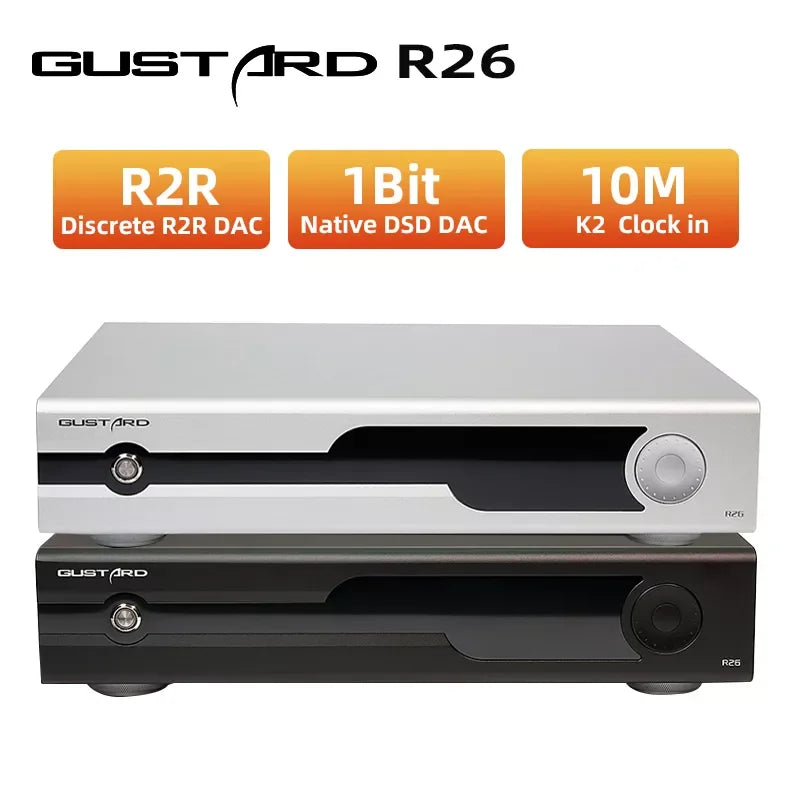

Discrete R2R DAC: R-2R ladder DAC converts the digital signal to analog signal by switching resistors' array, it provides a more natural sound. However, this architecture needs precision resistors and deep development to archieve fine performance.

Native 1Bit DAC:support DSD 512 (via USB) and DSD 1024 (via IIS). The DSD streamdecoded by the independent 1 bit convertor without DSD to PCM converting.*Volume is fixed under this mode.

CPLD: Complex Programmable Logic Device：Signal routing; Clock management; 2nd order PLL; DOP decoding; Depop for PCM&DSD.

Clock synthesization: Replace the input signal' s clock with precision oscillators (local or external). Interference from the input source' s clock is avoided. Function off: IIs, AES, COAX, OPT, BT; PCM NOS, 1 Bit Function on: USB & LAN K2, ultra-low noise clock synthesizer: provides precision clock from local oscillators or external clock in.

LPF is specifically designed for the D/A converter using discrete devices. Final parameters of the circuit are adjusted with subjective listening. Different from IC s, discrete circuits provide the possibilities to control every detail in sound and performance. But the parasitic effects introduced huge challenges to development experience and device' s quality.

Product Specifications:

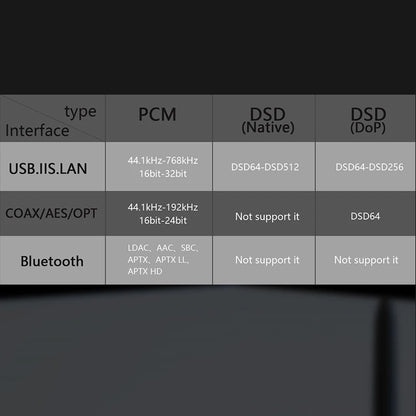

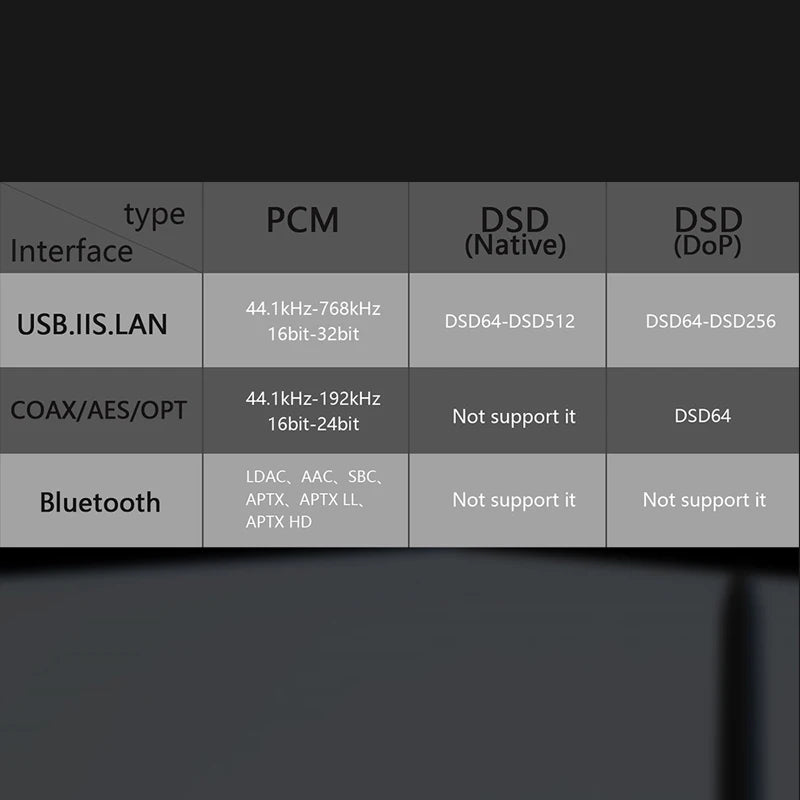

Sample rate supported by digital input channels:

COAX/AES/OPT :

PCM: 16bit-24bit/44.1kHz-192kHz

DSD(Native): Not support it

DSD(DoP): DSD64

USB.IIS.LAN:

PCM: 16bit-32bit/44.1kHz-768kHz

DSD(Native): DSD64-DSD512

DSD(DoP): DSD64-DSD256

Bluetooth:

PCM: LDAC、AAC、SBC、APTX、APTX LL、APTX HD

DSD(Native): Not support it

DSD(DoP): Not support it

Output performance :

Frequency Response: 20- 20kHz /+-0.2dB (Oversampling)

Dynamic range: >115dB

Signal-to-noise ratio: > 122dB

Crosstalk: -134dB @ 1kHz

THD+N: <=0.003% @1kHz

IMD:≈0.008% @ Odbfs

RCA: 2.5Vrms (VOLUME FIXED) 100Ω

XLR: 5.0Vrms VOLUME FIXED) 100Ω

XLR pinout: 1-Ground 2-Hot 3-Cold

Other specifications :

Power Supply: AC 115V/230V 50/60Hz

Power Consumption < 30W

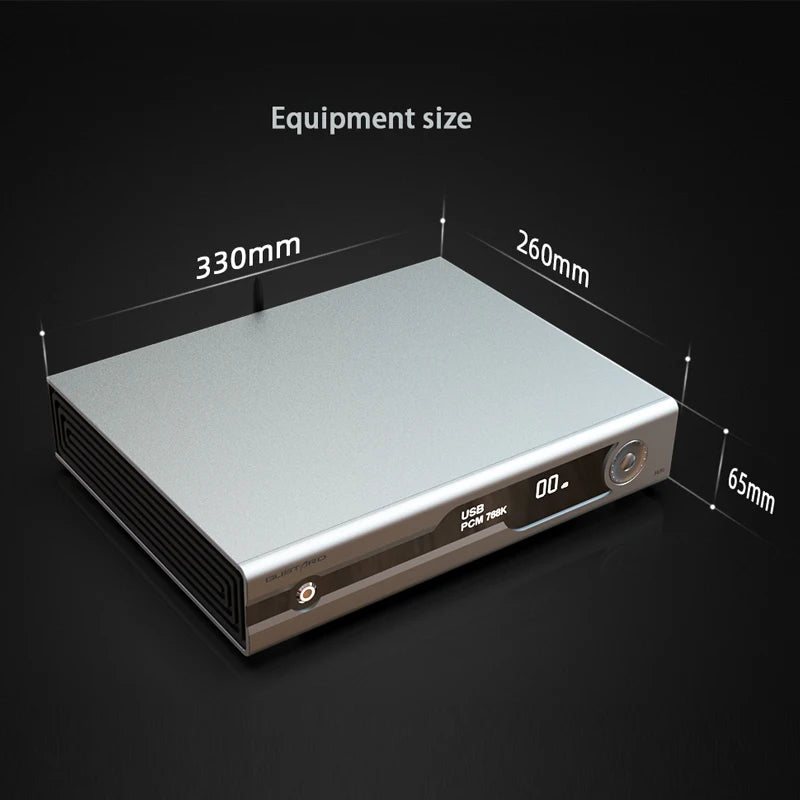

Size: 330mm (Width) * 260mm (Length) * 65mm (Height) (protrusion not included)

Packing size: 420mm (Width) * 360mm (Length) * 175mm (Height);

Weight: 7Kg (with package)

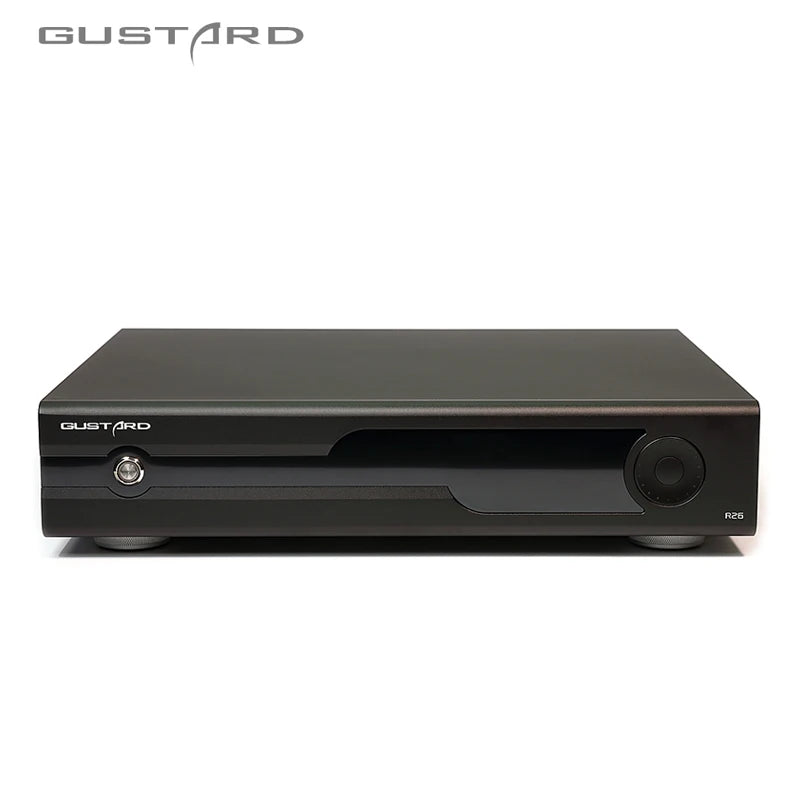

Sandblasted aluminum alloy case: Silver or Black version
